When Space Is Limited: How the TE 2.5mm Sealed Dual-Lock Connector Delivers Signal Reliability
When Space Gets Smaller, the Real Connector Challenges Begin
As devices grow more compact, the pressure on internal connector selection increases. Insufficient space, harsh environments, and assembly errors in mass production — these three challenges often appear together in the same project.

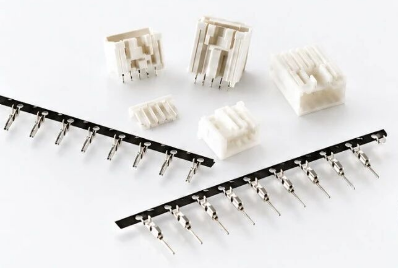

The TE 2.5mm Sealed Signal Dual-Lock Connector is an engineered fine-pitch sealed signal interconnect solution designed specifically for these scenarios.
2.5mm Pitch — Built for Confined Spaces
Small home appliances, personal healthcare devices, lighting equipment, industrial refrigeration systems, and power tools all share a common trend: shrinking internal space. With a 2.5mm pitch and position counts from 2 to 10, this series enables signal routing within confined layouts without consuming already-limited structural clearance.
Its role is not high-current power delivery, but low-power signal and control circuit connectivity. Rated at 3A per circuit / 250V AC and compatible with 22–26 AWG wire, the electrical parameters align precisely with the demands of internal signal connections in compact devices.
IP67 Sealing + UL 94 V-0 Flame Resistance — Built for Demanding Environments
Industrial refrigeration equipment operates under sustained low temperatures and significant humidity fluctuations. Outdoor lighting and lawn & garden devices may be exposed to moisture or brief water immersion. Power tools face unpredictable conditions in the field.
This series carries an IP67 waterproof and dustproof rating, with sealed construction at the mating interface (e.g., part number 2321918-4). The housing material is UL 94 V-0 certified and passes the 750°C glow wire test, meeting flammability and safety requirements for demanding device applications.
Anti-Mis-Insertion + TPA Retention — Assembly Reliability Built Into the Structure
In mass production, an unseated terminal, a reversed insertion, or an inadvertently released locking tab can each lead to rework or field failures.
This series incorporates polarized terminals and an anti-inadvertent-release locking tab to structurally reduce assembly errors. An optional TPA (Terminal Position Assurance) device is available for applications requiring additional retention reliability — maintaining stable connectivity under vibration, moisture, and demanding operating conditions while improving consistency across high-volume assembly.
Sealing Component Matching — A Detail That Cannot Be Overlooked
When selecting components, verify the following based on position count and mounting configuration: cap, plug, plug contacts, receptacle contacts, interface seal, rear seal, and whether a TPA is required.
Important: For IP67-rated applications, the interface seal and rear seal must be used together as a matched set. Selecting the correct housing part number alone is not sufficient — an incomplete sealing configuration will prevent the target protection rating from being achieved.
For mounting, this series is available in both free-hanging and panel-mount configurations, selectable based on harness routing and device fixing requirements.
Fit the Space. Withstand the Environment. Secure the Assembly.
These are the three challenges that signal connectivity in compact devices must truly solve. The TE 2.5mm Sealed Signal Dual-Lock Connector integrates sealed protection, assembly error-proofing, terminal retention, and safety compliance into a single interconnect solution — delivering reliable signal transmission within a 2.5mm fine-pitch form factor, wherever space leaves no margin for error.
